El Diablo Black 14" Rise Ape Hangers 1-1/4" Diameter Handlebars for Harley Dressers Baggers FLHT FLHTC Motorcycles

SKU: Dresser 14 Black El Diablo
ID #: 1983

Double click on above image to view full picture

More Views

Email to a Friend

Be the first to review this product

Availability: In stock

$159.99

Our Price : $159.99

Qty:

-OR-

Description

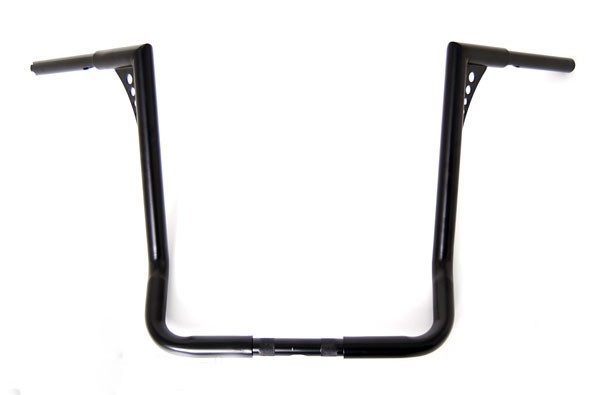

"EL DIABLO" BLACK APEHANGERS
14" Rise 1-1/4" Handlebars

To fit Harley-Davidson Touring models, Dressers, Baggers, FLHT, FLHTC from 1982 to present including. May work on throttle-by-wire models with custom fitting and any custom application.

These swedged handlebars have transition from the 1-1/4" diameter to the 1" area for mounting the stock OEM style 1" handlebar controls. These bars are made with CNC bender for a smooth radius at each bend.

Powdercoated black!
14" rise. 11" backward sweep.
1-1/4"-diameter. Center section and tips taper to 1" so that standard handlebar controls fit.
3-1/2 on-center knurling for firm mounting.
37" wide from tip to tip.
Come with drilled wiring holes.

Black finish

How to Install New Handlebar

Ever notice how most fine artists depict the devil? They draw this demon
from hells wings as having sharp angles. This vision was not lost on
Demons Cycles. Its new 1 1/4"-inch El Diablo handlebars sure remind us of
devil wings. No matter the imagery, we thought they have a real cool look, as
did Navy Seaman Mario Guerrero.

The El Diablo handlebars owe their sinister look to their severe angles and gusset plates. They are

fabricated from 1 1/4-nch tubing and powder coated black.

2. Our starting point, a 2007 Dyna Street-Bob: the dash, gas tank, and hand controls already have been removed.

3. The new handlebars have oblong holes to run the control wiring in and out through.

4. air nozzle is used to blow the lead string through the bars,Then a length of
rope is attached to the string and pulled through
the bars.

5. The rope was used to pull the controls wire harnesses through the bars.

6. The factory risers wer used to mount the new bars.

7. Because the bars are T inch in diameter at their center mounting position, a stock
clamp was used

8. The control switches were mounted to the bars and their harnesses fined over the top triple tree and routed into the frame.

9. The switch wiring exits the front of the switch housing and into the bars.

10. Once the switch houseing were in the place the front brake and clutch levers were attached to the bars

11. These stunning bars sure remind us of devil wings.

If you have any questions or need help with finding a product or having problems with checking out or site in general, please contact us 954-943-0000 or Email us at sales@demonscycle.com We will help you!

Details

Black finish

How to Install New Handlebar

The El Diablo handlebars owe their sinister look to their severe angles and gusset plates. They are

fabricated from 1 1/4"-inch tubing and powder coated black.

2. Our starting point, a 2007 Dyna Street-Bob: the dash, gas tank, and hand controls already have been removed.

3. The new handlebars have oblong holes to run the control wiring in and out through.

4. air nozzle is used to blow the lead string through the bars,Then a length of
rope is attached to the string and pulled through
the bars.

5. The rope was used to pull the controls wire harnesses through the bars.

6. The factory risers wer used to mount the new bars.

7. Because the bars are T inch in diameter at their center mounting position, a stock
clamp was used

8. The control switches were mounted to the bars and their harnesses fined over the top triple tree and routed into the frame.

9. The switch wiring exits the front of the switch housing and into the bars.

10. Once the switch houseing were in the place the front brake and clutch levers were attached to the bars

11. These stunning bars sure remind us of devil wings.
